PRESS FOR BLANKING OF INTERNAL CAR COVERINGS

home / automotive presses

blanking of car interior coatings
blanking of car interior coatings

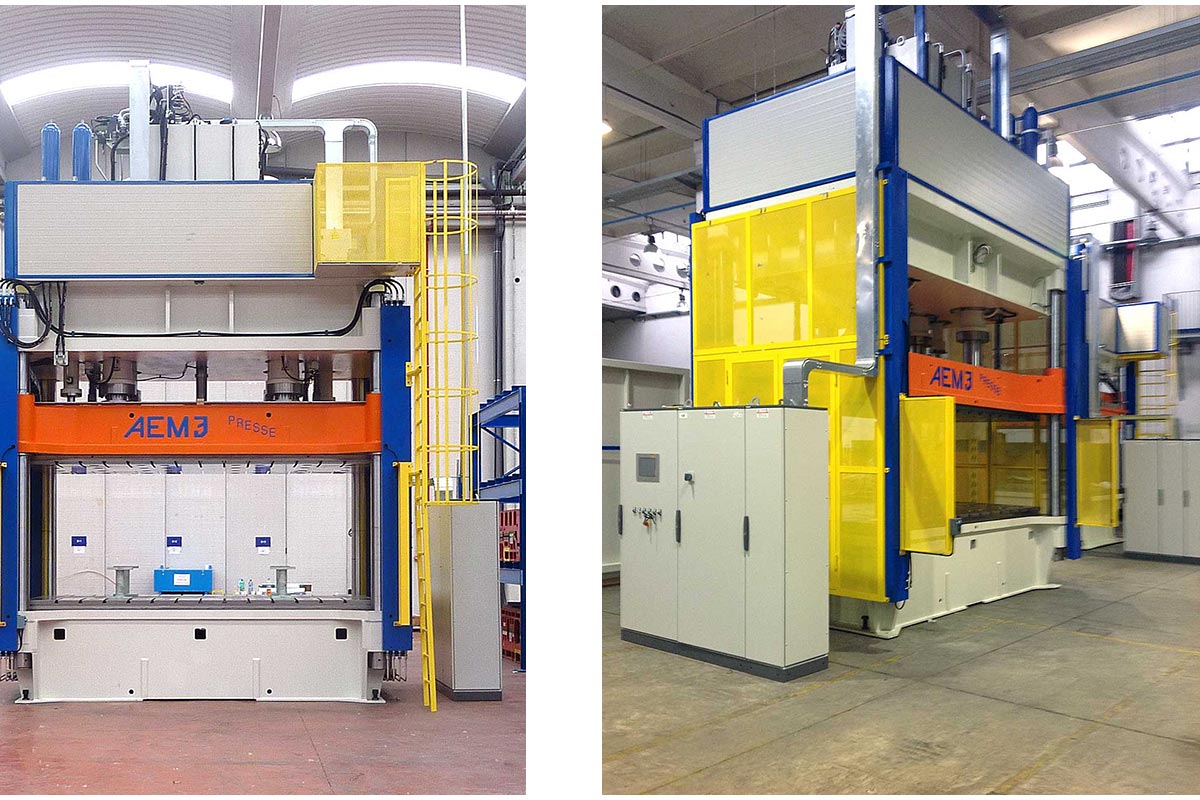

HYDRAULIC PRESS WITH OPEN SHOULDERS - 400 ton POWER

automotive presses

- 4 COLUMNS HYDRAULIC PRESS with 4-CYLINDER HYDRAULIC SYSTEM of SYNCHRONISM.
- n ° 4 DOUBLE EFFECT HYDRAULIC CYLINDERS of 100 tons each. + n ° 2 CYLINDERS for QUICK RESOURCE of 25 tons.
- DOWN / DOWN SPEED 300 mm / sec.
- WORKING SPEED 0.1-5 mm / sec.
- MAX WORKING PRESSURE 200 bar.
- CYLINDER STROKE 1200 mm.
- LIGHT between the OPENED FLOORS 1500 mm.
- USEFUL DIMENSIONS of the WORKTOP 3700 X 1800 mm.
- DISTANCE between the COLUMNS 3.500 X 2.000 mm.
- SYSTEM with ENERGY SAVING SYSTEM that ALLOWS SHORT TERM TERMINATION TIMES

Code 11014
