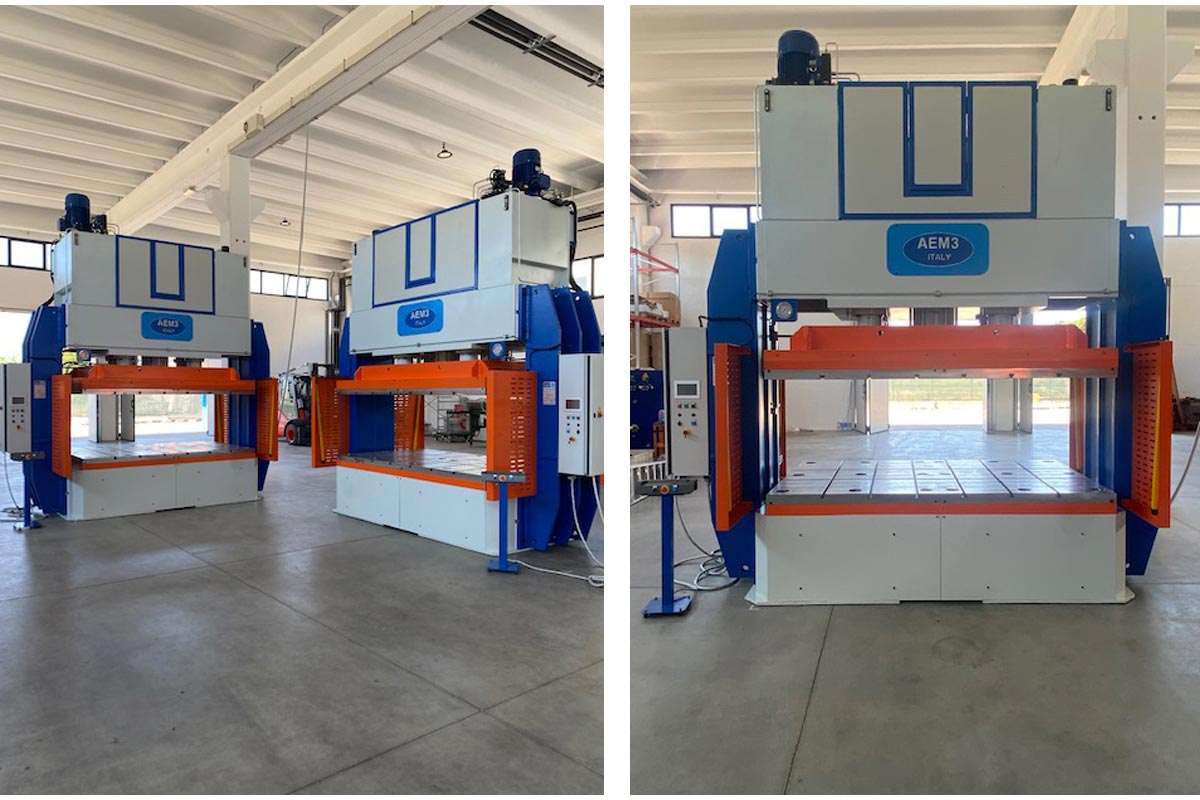

200/100 tons hot forging presses for automotive interiors

home / automotive presses

200/100 tons hot forging presses for automotive interiors

200/100 tons hot forging presses for automotive interiors

automotive presses

Front protection PHOTOELECTRIC BARRIERS
Rear protection PHOTOELECTRIC BARRIERS
Right side protection CLOSED STRUCTURE
Left side protection CLOSED STRUCTURE
Lower floor - machining / slots for T nuts on customer request
Movable table - machining / slots for T nuts at the customer's request
Installed power 20/12 KW
Thrust force of main cylinder 200/100 Tonn
Operator side horizontal light 2900 mm
Vertical light 900 mm
Main cylinder stroke 700 mm
Height of the worktop from the ground 825 mm
Dimension of the lower worktop 2600x1700 mm
Dimension of the mobile worktop 2600x1700 mm
Fast descent speed 100 mm / sec
Working speed 5 mm / sec
Fast ascent speed 100 mm / sec

Code 21x10/11
