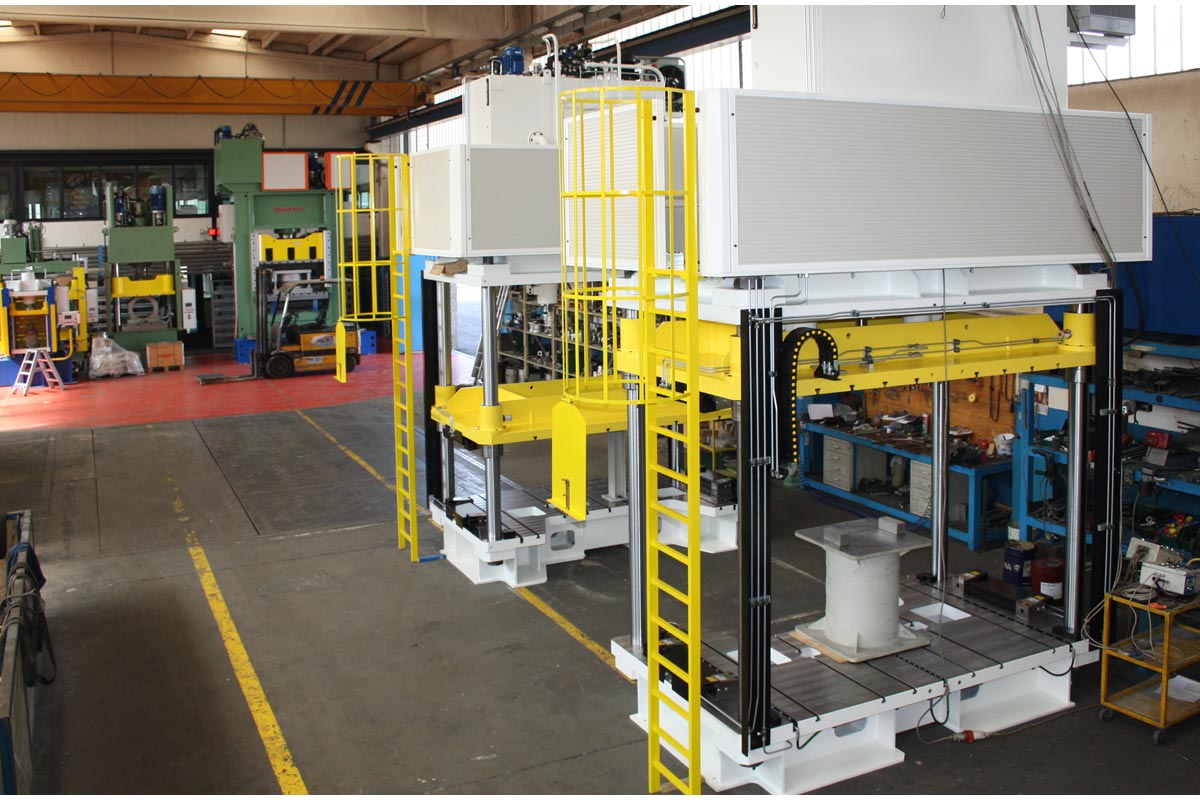

Presses for automotive

Presses for automotive

automotive presses

Press supplied as ALMOST MACHINE without electrical systems and protections
Lower floor - machining / slots for T nuts on customer request
Movable table - machining / slots for T nuts at the customer's request
Installed power 55 KW
Main cylinder thrust force 50 Tons
Operator side horizontal light 2610 mm
Side horizontal light 1240 mm
Vertical light 2000 mm
Main cylinder stroke 1200 mm
Height of the worktop from the ground 500 mm
Dimension of the lower worktop 2600x1700 mm
Dimension of the mobile worktop 2600x1700 mm
Fast descent speed 200 mm / sec
Working speed 5 mm / sec
Fast ascent speed 200 mm / sec

Code 20x11
